Food Grade Gum Base Chewing Gum Bubble Gum Sigma Blade Mixer with Extruder

Chewing Gum Sigma Mixer Application and introduction Chewing Gum Sigma Mixer is an widely used mixing machine ,with strong mixing…

Chewing Gum Sigma Mixer

Application and introduction Chewing Gum Sigma Mixer is an widely used mixing machine ,with strong mixing blade and motor ,mainly for high viscous materials and slurries, It with special Z blade ,and a U shape chamber with cover , Two blade rotating with different speed ,one is slow and one is quick

Inquire us

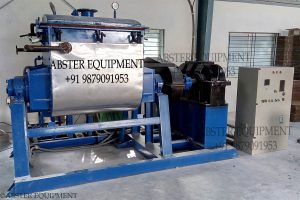

Double-Agitators-Sigma-Shape-Blade-Mixer

Chewing Gum Sigma Mixer Kneading Mixer Kneader

Application and introduction

Sigma mixer is an widely used mixing machine ,with strong mixing blade and motor ,mainly for  high viscous materials and slurries, It with special Z blade ,and a U shape chamber with cover , Two blade rotating with different speed ,one is slow and one is quick .

two speed producing an high forced power to the materials to make the materials well mixed and stable uniformed.

The sigma blade mixer is widely used on many areas which are suitable for hard and  high viscous materials .like food industry ,plastic .,rubber ,and chemicals.

Bubble gum chewing gum sigma mixer is an very necessary equipment for bubble gum and chewing gum

production ,It is working with high efficiency and low energy cost . and vacuum system and screw extruder device is guaranteed the quality and purify.

Chewing Gum Sigma Mixer Specification

Model
Capacity (L)
Power (kw)
Rotating speed rpm
Vacuum degree( Mpa)
Weight
Jacket
ABFSM-5
5
0.75
33/23
-0.094
300
Customized
ABFSM-10
10
1.1
33/23
-0.094
400
Customized
ABFSM-50
50
3
45/23
-0.094
600
Customized
ABFSM-100
100
7.5
35/22
-0.094
1200
Customized
ABFSM-300
300
11-30
37/21
-0.094
1600
Customized
ABFSM-500
500
15-37
35/25
-0.094
3000
Customized
ABFSM-1000
1000
22-90
35/25
-0.094
4500
Customized
ABFSM-1500
1500
22-90
30-16
-0.094
5800
Customized
ABFSM-2000
2000
30-110
30/16
-0.094
6000
Customized

Salient Features

  • Sigma Mixer machine is a Batch type Mixer
  • In sigma mixer, Mixing Trough and Blades are fabricated from mild steel, stainless steel 304 and 316 grade.
  • Blades of sigma mixers are designed to obtain thorough mixing of high viscosity materials.
  • Sigma Mixers Blades are machined to keep minimum equal gap between through walls and blades.
  • Sigma mixers have fixed with Heavy-duty gears to sustaion of load of Kneading.
  • Shaft sealing into the stuffing boxes is provided by Teflon Chevron Rings / PTFE breaded gland rope to prevent leaking from blade ends.
  • Safety Guards and Grills are provided for maximum safety in sigma mixers.
