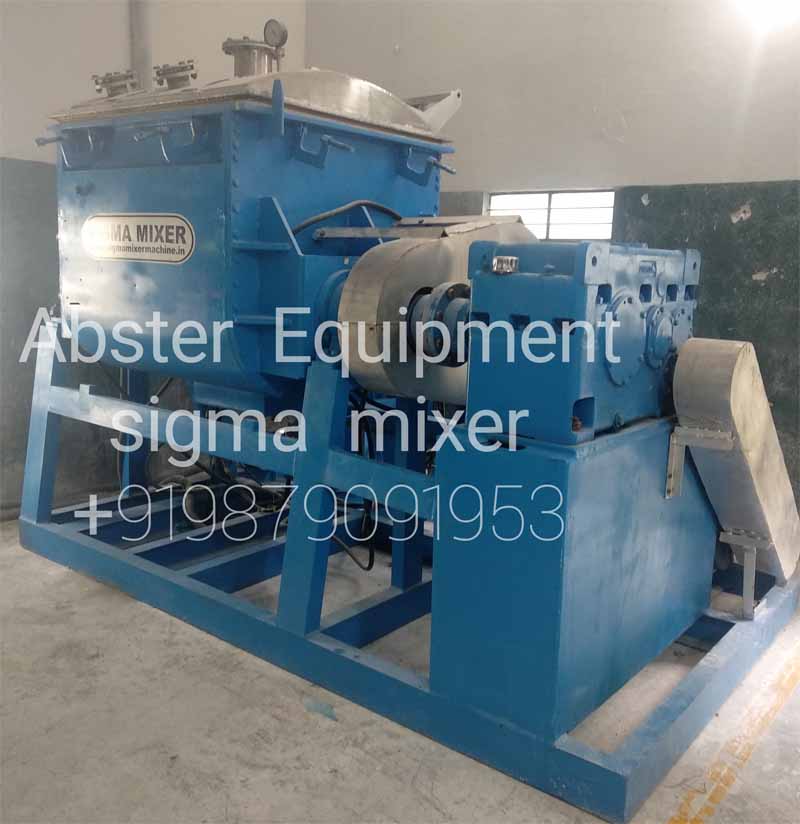

What is the Components of Rubber Kneader Machine?
Flexible material selection of the construction The structure use the carbon steel, manganese steel, 304 stainless steel, 316L stainless steel, 321 stainless steel and etc., and different material combination is available. When selecting equipment, distinguish between: the part in contact with the material and the part not in contact with the material The interior of the rubber kneaders can be anti-corrosion, anti-adhesion, isolation, and wear resistance; Stainless steel surface is available with santish, hairline, No.4 and mirror finish. Reliable driving equipment abster rubber kneader machine is equipped with driving devices of different capacities, different powers and different output speeds . The selection of the drive motor includes: ordinary motor, riot motor, variable frequency motor, high efficiency energy-saving motor, high protection level motor, and motor under different voltage.
Agitating device
Two sigma-type blades operate together in a horizontal trough and rotate at differential speeds, thereby tearing rugged materials with intense shear. During the mix cycle, the extrusion screw continuously moves materials within reach of the mixing blades, shortening cycle time significantly compared to conventional double-arm sigma mixers. The result is a homogeneous blend. Vacuum decompression The kneading operation (kneading mode) performed under vacuum decompression after the vacuum tank cover and the vacuum shaft seal are used, (low temperature boiling, de aeration, and a certain degree of dehydration). Feeding and discharging For the kneaders of screw type, after the mixing/kneading cycle is complete, the screw is reversed and it transports the mixed materials from the mix zone out through a discharge die and on to further processing or packaging. Shaft seal Spindle seal for particle, powder, micron powder, liquid, slurry state Energy-saving cooling and heating system According to the user’s request, a jacketed jacket is installed on the outer wall of the Sigma Blender kneaders drum , and the agitating paddle is made into an inner hollow form, so that cooling or heating can be performed. Accessories According to the needs of users, it is also possible to install load safety devices, various measuring instruments. Various specifications and motor power may be changed due to improvements. Depending on the quality of the processing, carrying out special design and manufacturing. Sigma mixer kneader
