Double cone blender

Double Cone Blender Double Cone Blender Double Cone Blender used for Effective Process Technical of uniform mixing, lubricating & blending…

Double Cone Blender

Double Cone Blender used for Effective Process Technical of uniform mixing, lubricating & blending of dry powder & granules

manufacturer & supplier of wide gamut of Double Cone Blender.

These chemical blenders are basically used for mixing different types of chemical materials. Capacity of our chemical blenders varies upto 10000 liters. We manufacturer chemical blenders by using quality stainless steel, mild steel & other materials.

Some of the offered chemical blender includes process chemical blenders, chemical powder blenders, stainless steel chemical blenders, jacketed chemical blenders, industrial chemical blenders etc.

Application & Process :

Blenders are used for mixing, lubricating and blending in Pharmaceutical, Nutraceutical, Food, Chemical, cosmetics, ceramics, pesticide, plastics and other Allied industries

The Double Cone blenders have long two corner of product container for more rubbing and tumbler effect to the material for fast and homogenizing mixing. It can perform homogenously dry mixing of free flowing powders, granules requiring low shearing force, Mixing and Blending of particles with rapid intermixing of particles irrespective of varying specific gravities. The material is loaded into the double cone blender drum. The double blender is tumbles the material in the container and spread out. The mixing is achieved in 5 to 15 minutes with better homogeneity.

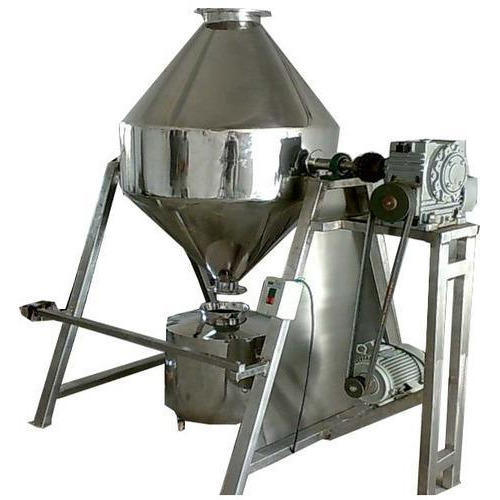

double-cone-blender

Technical Parameters

Model
Nominal Volume(L)
Working Volume(L)
Barrel Thickness (mm)
Barrel Rotation Speed(r/min)
Blade Rotation Speed(r/min)
Motor Power(kw)
VMS100
100
50
3
15
–
1.5
VMS300
300
150
3
24
24
1.5
VMS500
500
250
4
24
24
2.2
VMS1000
1000
500
4
10
10
7.5
VMS2000
2000
1050
5
10
10
12
VMS3000
3000
1500
6
8
8
18

Salient Features :

  • Design is cGMP – Current Good Manufacturing Practices compliance
  • All Product contact parts AISI 316 & non contact parts AISI 304.
  • Double Cone shape product container for Ideal dry mixer for lubrication of granules and homogenization mixing of multiple batches in to single batch.
  • Available Capacity model in octagonal blender 25 kg to 2500 kg batch size..
  • Enclosed rigid drive with reduction gear box and motor.
  • “A” type rigid structure of the machine with two sides resting of product container.
  • Product container having discharge with butterfly valve and man hole.
  • Charging hole with hinged lid with seal for charging and cleaning.
  • The product container rotates on sped 8 RPM.
  • Safety reeling provided for rotating area of product container.
  • Fixed baffles provided for lumps braking.
  • Electric controls panel with cycle time.

Optional Features :

  • Charging Option:
    • 1. Loading & Unloading by Product container with Jacking trolley.
    • 2. Vacuum conveying system.
    • 3. Bin loading by hydraulic hoist.
  • Rotary Intensifier with AC variable drive.
  • AC Frequency variable drive for product container.
  • PLC Controls with HMI touch screen,
  • Flame proof motor and Push Button station.
  • Inline milling and loading with vacuum transfer systems.

Optional Features :​

  • Charging Option:
    • 1. Loading & Unloading by Product container with Jacking trolley.
    • 2. Vacuum conveying system.
    • 3. Bin loading by hydraulic hoist.
  • Rotary Intensifier with AC variable drive.
  • AC Frequency variable drive for product container.
  • PLC Controls with HMI touch screen,
  • Flame proof motor and Push Button station.
  • Inline milling and loading with vacuum transfer systems.

Safety Features :

  • Safety reeling with limit switch.
  • Overload protection and emergency stop.

DOUBLE CONE BLENDER LAB SCALE GMP MODEL

Operation

The Lab Double Cone Blender is an efficient and versatile machine for mixing dry powder and granules homogeneously. All the contact parts made out of stainless steel of required grade by customer. Two third of the volume of the Cone Blender is filled to ensure proper mixing. It can be used for Pharmaceutical, Food, Chemical and Cosmetic products etc.

Safety Features :

  • The conical shape at both ends enables uniform mixing and easy discharge.
  • All contact parts are made out of stainless 316 quality material, as required by customer.
  • One shaft with 04 nos. of fixed baffles with mirror polished provided inside the cone.
  • Cone will be mirror polished from the inside; outside & structure.
  • All moving parts covered with SS304 covers.
  • Safety guards made from SS304 flats provided in front of the m/c with Selector switch.
  • The conical shape at both ends enables uniform mixing and easy discharge.
  • All contact parts are made out of SS316 quality material.
  • Maximum care has been taken to ensure safe operation of the unit.
  • Worm reduction gear use for speed reduction.
  • Food grade rubber gasket will be used on both end of cone.
  • Inside & outside of the cone will be polished to the mirror finished.
  • General structure made out of SS304 and Polished to the mirror finish

Technical Parameters

SpecificationLDCB-50LDCB-30

Motor
1.0 HP 3ph 1440rpm
0.5 HP 3ph 1440rpm
Capacity
20 Kg ≈ 50 Ltrs.
12 Kg ≈ 30 Ltrs.
Contact Part
S.S. 316
S.S. 316
Gear Box
C/d 2.5” Ratio 1:22
C/d 2.5” Ratio 1:22
RPM
Approx. 36
Approx. 36
Net Weight
Approx. 90 Kgs.
Approx. 80 Kgs.

Dimensions & Technical Details are subject to change as per customers’ requirement without any further notice
