Lifting and lowering

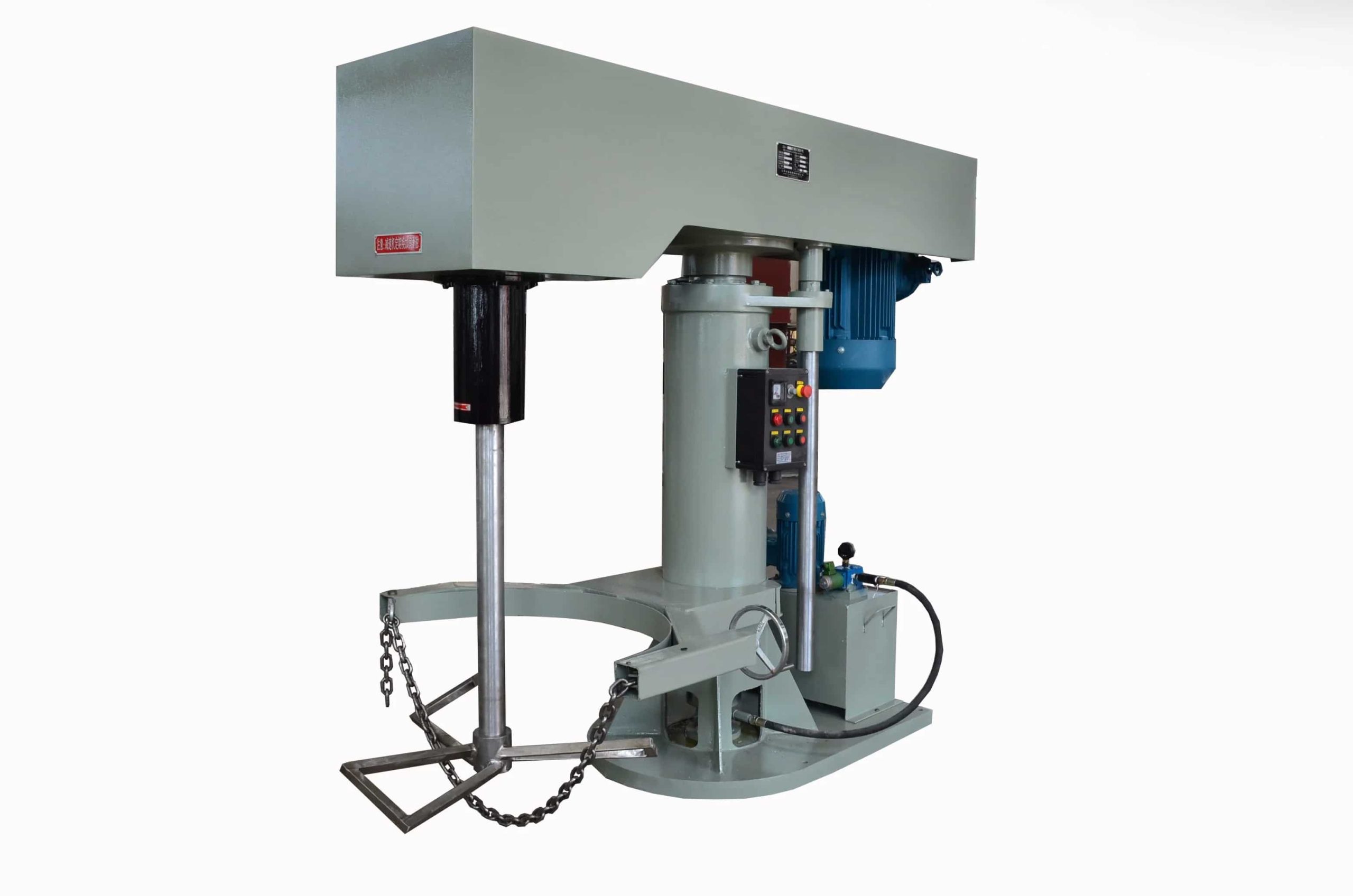

The entire drive head and shaft is mounted on a hydraulic column which can be lifted and lowered to clear the height of the vessel. The Hydraulic column comes complete with hydraulic cylinder, piston rod, power pack unit, valves electric motor and all interconnecting pipelines and hoses.
Electric Motor
TEFC motor, drives a set of pulleys and V belts. The Motor is provided with a belt tensioning device. The motor details are 415 V / 50 Cycles / 3 Phase . First-class Chinese motor as standard. Siemens and ABB motor are optional
Speed inverter
An AC Frequency inverter installed in a panel controls the RPM of the Disperser shaft from 0-1500. The inverter is provided with settings for monitoring torque, amperage, voltage, power factor etc and is PC compatible. Siemens, ABB and Yaskawa speed inverter are optional
Electric Control Panel (Non-Ex proof)
A control panel is provided with the following functions. Main motors on off, ammeters, voltmeter, emergency stop, inverter trip, indicating lamps, speed control switch, RPM indicator. All internal wiring is per international codes of practice.
Electric Control Panel (Ex proof)
A remote control panel is provided with the following ex proof controls. Main motors on off, ammeters, voltmeter, emergency stop, inverter trip, indicating lamps, speed control switch, RPM indicator. All internal wiring is per international codes of practice. The inverter is installed in a separate panel and is to be installed in a safe Non-Ex proof zone.
Vessel Locking Device (Optional)
A vessel locking device consisting of locking arms, cantering device, and manually operated locking screw is provided.
Vessel (Optional)
The mixing vessel is fabricated from SS plates and is provided with 3 nos castor wheels, SS bottom discharge ball valve and towing handles. All SS parts are duly polished inside and outside.
Vacuum (Optional)
It is possible to manufacture based on vacuum structure, in order to get better defoaming as well mixing results.
