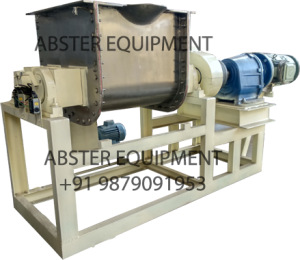

Asafoetida Sigma Mixer

Asafoetida sigma mixer Asafoetida is an exudate from the ferula plant, raw Asafoetida — in the form of latex — from Afghanistan. It is thereafter compounded or blended with wheat flour and gum Arabic in sigma mixers. Water is added and heat treatment is given before passing the product through hammer mill to crush and powder it. Magnets snatch fine iron particles before final packing is made.

Main Application:

1.Kneading Mixer can be widely used in Asafoetida Lump, Compounded Asafoetida, Sigma Mixer Chemical, Plastic, Rubber, Printing-ink, Carbon, Medicine, Food Industry.
2.The part which contact material is made by Stainless Steel or Cast Steel,can insure the Purity and Quality of the product.It takes “Z” shapes double blades,can insure the material rapidly react,evenly mix.
3.Kneading Mixer mainly including Three Kind:Ordinary Type,Pressure Type,Vacuum Type.
4.Heating eay is generally Electric Heating and Steam Heating.
5.Discharging ways is :Hydraulic dumping up cylinder Type;Ball valve Discharge Type;Screw extrusion Type.

Sigma mixer Structure Feature and Working Principle:

Start the motor,add the material,after adding material,clean the foreign matter on the cylinder port.It takes Hydraulic Dumping up cylinder Discharge the material,it is rapid and clean to discharge.

Lubrication System:

1:Gear Reducer:According to the lubricating oil according to practical application.
2:Like Bearing,Overturn turbin box,operate about 500 hours add lubricating oil.
3:Other parts according to practical situation.

Test run and Preparation of before operation:

1:After the Installation,firstly proceed Cleaning, Decontaminate and add antitrust grease.Check every lubricating part then add lubricating oil.
2:Before operating,check the Up-tight Degree of triangle belt.
3:Check the fastening piece if loose’ Circuit and electrical equipment if safe.
4:Before test run should insure the Kneading room is clean.Keep machine Idling about 10-15 minutes.After insuring machine is in normal operation then put the material into production.
